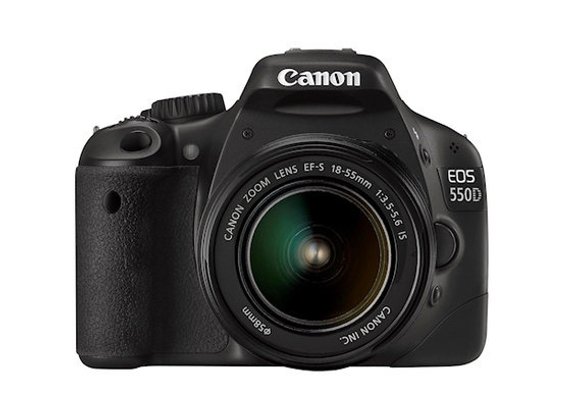

Canon EOS 550D

Stainless Steel and polycarbonate resin with glass fiber

• 18.7 million effective pixels
• 18.0 million total pixels
• 22.3 x 14.9 mm CMOS sensor
• RGB Color Filter Array
• Built-in low-pass filter with self cleaning unit
• 3:2 aspect ratio

• Low-pass filter vibration at power-on (can be interrupted)
• Anti-static coating on sensor surfaces
• Software based dust-removal (camera maps dust, removed later)

• 5184 x 3456
• 3456 x 2304
• 2592 x 1728

• RAW (.CR2 14-bit)
• RAW (.CR2 14-bit) + JPEG Large/Fine
• JPEG (EXIF 2.21) - Fine, Normal

• 1920 x 1080 (1080P, 16:9) @ 30/25/24 fps
• 1280 x 720 (720P, 16:9) @ 60/50 fps
• 640 x 480 (4:3) @ 60/50 fps
• Quicktime MOV format (H.264 video,linear PCM audio)
• Up to 29 min 59 sec (or max file size 4 GB)

DIGIC 4

• Canon EF / EF-S lens mount
• 1.6x field of view crop

• Auto Focus
• Manual Focus (switch on lens)

• 9-point CMOS sensor
• F5.6 cross-type at center, extra sensitivity at F2.8
• AF working range: -0.5 to 18 EV (at 23°C, ISO 100)
• Predictive AF up to 10 m

• AI Focus
• One Shot
• AI Servo

• Auto
• Manual

Flash strobe

• Auto
• Portrait
• Landscape
• Close-up
• Sports
• Night portrait
• Flash off
• Movie
• Program AE (P)
• Shutter priority AE (Tv)
• Aperture priority AE (Av)
• Manual (M)
• Auto depth-of-field

• TTL 63-zone SPC
• Metering range: EV 1.0 - 20 EV (at 23°C, ISO 100, 50 mm F1.4)

• Evaluative 63-zone (linked to AF points)
• Partial 9% at center
• Spot 4% at center
• Center-weighted average

AE lock button

• +/- 2.0 EV (3 shots)
• 0.5 or 0.3 EV increments

• +/- 5.0 EV
• 0.5 or 0.3 EV increments

• Auto (100 - 6400 *)
• ISO 100
• ISO 200
• ISO 400
• ISO 800
• ISO 1600
• ISO 3200
• ISO 6400 *
• H1 expansion (ISO 12800 equiv.)
• Highlight tone priority

• Focal-plane shutter
• 30 - 1/4000 sec (0.5 or 0.3 EV steps)
• Flash X-Sync: 1/200 sec
• Bulb

• F1.0 - F91 (0.3 EV steps)
• Actual aperture range depends on lens used

 • Auto
 • Daylight
 • Shade
 • Cloudy
 • Tungsten
 • Fluorescent
 • Flash
 • Custom

• +/-3 levels
• 3 images
• Selectable Blue/Amber or Magenta/Green bias

• Blue (-9) to Amber (+9)
• Magenta (-9) to Green (+9)

• sRGB
• Adobe RGB

• Standard
• Portrait
• Landscape
• Neutral
• Faithful
• Monochrome
• User 1
• User 2
• User 3

• Sharpness: 0 to 7
• Contrast: -4 to +4
• Saturation: -4 to +4
• Color tone: -4 to +4
• B&W filter: N, Ye, Or, R, G
• B&W tone: N, S, B, P, G

• Highlight Tone Priority
• Auto Lighting Optimizer (Basic and Creative modes)
• Long exposure noise reduction
• High ISO speed noise reduction
• Peripheral illumination correction

• Single
• Continuous: 3.7 fps up to 34 Large/Fine JPEG / 6 RAW frames *
• Self-timer 10 secs (2 sec with mirror lock-up)
• Self-timer continuous

Yes (custom function)

• Pentamirror
• 95% frame coverage
• Magnification: 0.87x (-1 diopter with 50 mm lens at infinity)
• Eyepoint: 19 mm
• Dioptric adjustment: -3.0 to +1.0 diopter
• Fixed precision matte
• Proximity sensor disables LCD shooting mode information

• AF information (AF points focus confirmation light)
• Shutter speed
• Aperture value
• ISO speed (always displayed)
• AE lock
• Exposure level/compensation
• Spot metering circle
• Exposure warning
• AEB
• Flash ready
• High-speed sync
• FE lock
• Flash exposure compensation
• Red-eye reduction light
• White balance correction
• SD card information
• Monochrome shooting
• Maximum burst
• Highlight tone priority

Yes, button

• 3.0" 3:2 TFT LCD
• 1040,000 pixels
• Approx 100% coverage
• Wide viewing angle (160° horizontal and vertical)
• Dual anti-reflection, anti-smudge
• 7 brightness levels
• Up to 10x zoom playback

• Live TTL display of scene from CMOS image sensor
• 100% frame coverage (30 fps display rate)
• Real-time evaluative metering using CMOS image sensor
• Best view or exposure simulation
• Grid optional (thirds)
• Magnify optional (5x or 10x at any point on the screen)
• Optional Auto-focus with mirror-down / mirror-up sequence
• Quick or Live mode autofocus

• Uses last play mode
• Magnification possible
• 2 / 4 / 8 sec / Hold

• Auto pop-up E-TTL II auto flash
• Guide number approx 13
• Modes: Auto, Manual Flash On/ Off, Red-Eye Reduction
• X-Sync: 1/200 sec
• Flash exposure compensation: +/-2.0 EV (0.3 or 0.5 EV steps)
• Coverage up to 17 mm focal length (27 mm FOV equiv.)

• E-TTL II auto flash with EX-series Speedlites
• Hot-shoe

• Orientation sensor
• In-camera copyright information
• Automatically writes FAT16/FAT32 depending on capacity

• On (playback uses orientation data in file header)
• Off

• Single image
• Single image with info (histogram brightness / RGB )
• Magnified view (1.5 - 10x in 15 steps, browsable)
• 4 and 9 image index
• Auto play
• Image rotation
• Jump (by 10, 100 or date)

12 custom functions with 36 settings

• English
• German
• French
• Dutch
• Danish
• Portuguese
• Finnish
• Italian
• Norwegian
• Swedish
• Spanish
• Greek
• Russian
• Polish
• Czech
• Hungarian
• Romanian
• Ukrainian
• Turkish
• Arabic
• Thai
• Simplified Chinese
• Traditional Chinese
• Korean
• Japanese

User upgradable

• USB 2.0 (Hi-Speed)
• Video out (PAL / NTSC) (integrated with USB terminal *)
• HDMI mini output (HDMI-CEC)
• E3 type wired remote control
• Remote Controller RC-6
• External microphone (3.5mm Stereo mini jack

• Mono microphone on front
• Mono speaker on rear
• External stereo mike (optional)

• SD / SDHC card
• SDXC card *

• Lithium-Ion LP-E8 rechargeable battery
• Approx 440 shots (23°C AE 50%, FE 50%), CIPA standard
• 4 level battery life display
• Optional ACK-E8 AC adapter kit

Yes, BG-E8

• Canon Selphy Printers
• Canon Bubble Jet Printers with direct print function
• Canon PIXMA Printers supporting PictBridge
• PictBridge

129 x 98 x 62 mm (5.1 x 3.9 x 2.4 in)

530 g (1.17 lb)

• Zoom Browser EX / ImageBrowser
• Digital Photo Professional (Windows / Mac)
• PhotoStitch
• EOS Utility (inc. Remote Capture; Windows & Mac except Mac Intel)
• Original Data Security Tools
• Picture Style Editor
